Streaming Class Reference

The Streaming class can be used to stream audio data. More...

#include <Driver/DriverComponents/Streaming.h>

Inheritance diagram for Streaming:

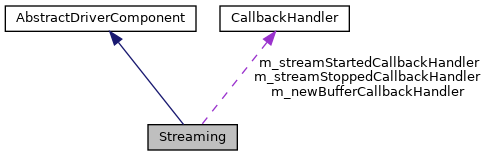

Collaboration diagram for Streaming:

Public Member Functions
	Streaming (pMessageProcessor messageProcessor)
void	start ()
	start Start the audio stream More...
void	stop ()
	stop Stops the audio stream More...
void	reset ()
	reset Resets the stream More...
bool	isStreaming () const
	isStreaming Check if there is an running data stream More...
void	transmit (const DataBuffer &dataBuffer)
	transmit Transmits a databuffer More...
size_t	pendingBufferCount ()
	pendingBufferCount Gets the amount of queued Databuffers More...
DataBuffer	nextQueuedBuffer ()
	nextQueuedBuffer Gets the next queued buffer from m_dataQueue More...
std::shared_ptr< std::function< void()> >	addNewBufferCallback (const std::function< void()> &newBufferCallback)
	addNewBufferCallback Adds callback that is called when a new buffer is recieved More...
bool	removeNewBufferCallback (std::shared_ptr< std::function< void(void)>> callback)
std::shared_ptr< std::function< void()> >	addStreamStartedCallback (const std::function< void()> &callback)
bool	removeStreamStartedCallback (std::shared_ptr< std::function< void(void)>> callback)
std::shared_ptr< std::function< void()> >	addStreamStoppedCallback (const std::function< void()> &callback)
bool	removeStreamStoppedCallback (std::shared_ptr< std::function< void(void)>> callback)
Public Member Functions inherited from AbstractDriverComponent
	AbstractDriverComponent (pMessageProcessor messageProcessor)

Protected Member Functions
void	handleNewDataRecieved (const google::protobuf::Message &message)
void	handleStopStreamRecieved (const google::protobuf::Message &message)
void	handleStartStreamRecieved (const google::protobuf::Message &message)

Private Attributes
CallbackHandler	m_streamStoppedCallbackHandler
CallbackHandler	m_streamStartedCallbackHandler
CallbackHandler	m_newBufferCallbackHandler
std::atomic< size_t >	m_totalBufferCount
std::queue< DataBuffer >	m_dataQueue
std::atomic_bool	m_isStreaming
std::mutex	m_dataQueueMutex

Additional Inherited Members
Protected Attributes inherited from AbstractDriverComponent
pMessageProcessor	m_messageProcessor

Detailed Description

The Streaming class can be used to stream audio data.

Definition at line 22 of file Streaming.h.

Constructor & Destructor Documentation

Streaming()

Streaming::Streaming

(

pMessageProcessor

messageProcessor

)

Definition at line 2 of file Streaming.cpp.

Member Function Documentation

addNewBufferCallback()

std::shared_ptr< std::function< void(void)> > Streaming::addNewBufferCallback

(

const std::function< void()> &

newBufferCallback

)

addNewBufferCallback Adds callback that is called when a new buffer is recieved

Parameters

newBufferCallback

callback to call when a new buffer is recieved

Definition at line 62 of file Streaming.cpp.

addStreamStartedCallback()

std::shared_ptr< std::function< void()> > Streaming::addStreamStartedCallback

(

const std::function< void()> &

callback

)

Definition at line 70 of file Streaming.cpp.

addStreamStoppedCallback()

std::shared_ptr< std::function< void()> > Streaming::addStreamStoppedCallback

(

const std::function< void()> &

callback

)

Definition at line 78 of file Streaming.cpp.

handleNewDataRecieved()

void Streaming::handleNewDataRecieved ( const google::protobuf::Message &  message )

protected

Definition at line 28 of file Streaming.cpp.

handleStartStreamRecieved()

void Streaming::handleStartStreamRecieved ( const google::protobuf::Message &  message )

protected

Definition at line 95 of file Streaming.cpp.

handleStopStreamRecieved()

void Streaming::handleStopStreamRecieved ( const google::protobuf::Message &  message )

protected

Definition at line 86 of file Streaming.cpp.

isStreaming()

bool Streaming::isStreaming

(

)

const

isStreaming Check if there is an running data stream

Returns

returns true if the stream is streaming

Definition at line 38 of file Streaming.cpp.

nextQueuedBuffer()

DataBuffer Streaming::nextQueuedBuffer

(

)

nextQueuedBuffer Gets the next queued buffer from m_dataQueue

Returns

next queued buffer

Definition at line 51 of file Streaming.cpp.

pendingBufferCount()

size_t Streaming::pendingBufferCount

(

)

pendingBufferCount Gets the amount of queued Databuffers

Returns

the amount of queued DataBuffers

Definition at line 46 of file Streaming.cpp.

removeNewBufferCallback()

bool Streaming::removeNewBufferCallback

(

std::shared_ptr< std::function< void(void)>>

callback

)

Definition at line 66 of file Streaming.cpp.

removeStreamStartedCallback()

bool Streaming::removeStreamStartedCallback

(

std::shared_ptr< std::function< void(void)>>

callback

)

Definition at line 74 of file Streaming.cpp.

removeStreamStoppedCallback()

bool Streaming::removeStreamStoppedCallback

(

std::shared_ptr< std::function< void(void)>>

callback

)

Definition at line 82 of file Streaming.cpp.

reset()

void Streaming::reset ( )

virtual

reset Resets the stream

Implements AbstractDriverComponent.

Definition at line 21 of file Streaming.cpp.

start()

void Streaming::start

(

)

start Start the audio stream

Definition at line 9 of file Streaming.cpp.

stop()

void Streaming::stop

(

)

stop Stops the audio stream

Definition at line 15 of file Streaming.cpp.

transmit()

void Streaming::transmit

(

const DataBuffer &

dataBuffer

)

transmit Transmits a databuffer

Parameters

dataBuffer

databuffer to transmit

Definition at line 42 of file Streaming.cpp.

Member Data Documentation

m_dataQueue

std::queue<DataBuffer> Streaming::m_dataQueue

private

Definition at line 98 of file Streaming.h.

m_dataQueueMutex

std::mutex Streaming::m_dataQueueMutex

private

Definition at line 100 of file Streaming.h.

m_isStreaming

std::atomic_bool Streaming::m_isStreaming

private

Definition at line 99 of file Streaming.h.

m_newBufferCallbackHandler

CallbackHandler Streaming::m_newBufferCallbackHandler

private

Definition at line 96 of file Streaming.h.

m_streamStartedCallbackHandler

CallbackHandler Streaming::m_streamStartedCallbackHandler

private

Definition at line 95 of file Streaming.h.

m_streamStoppedCallbackHandler

CallbackHandler Streaming::m_streamStoppedCallbackHandler

private

Definition at line 94 of file Streaming.h.

m_totalBufferCount

std::atomic<size_t> Streaming::m_totalBufferCount

private

Definition at line 97 of file Streaming.h.
